Industrial Display

Reliable HMI Interfaces from Vougavent

Vougavent ID-HD001, is an Industrial display platform developed for quick customization of the customer requirements. Running of Linux, the platform includes multiple features to suit various applications.

High bright sunlight readable and low power consumption display technologies offer the highest quality LCDs for specific industrial applications. Our embedded LCD can be manufactured in an open frame, VESA mount, or fully enclosed housing for

  • Electric Charging Stations
  • HMI display
  • KIOSK
  • Vending machine
  • Industrial automation

and more.

IP65 rated
Easy integration
High Surge immunity

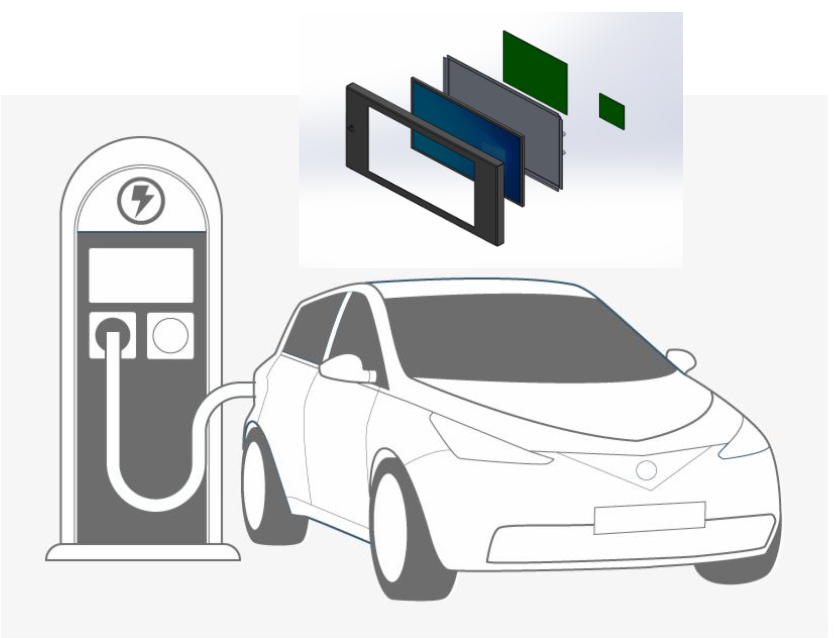

Best suited for exterior installation like Charging stations

Our displays are specially designed to work in harsh environments. The device is designed to meet IP65 rating and is immune to supply-like surges

Model Specifications
Power Rating 12V – 1 A
Installation Panel Mount
Resolution 800x600, SVGA
View Angle
  • Horizontal – 160 deg
  • Vertical – 130 deg
Core Cortex-M7 @ 1 GHz + Arm Cortex-M4 @ 400 MHz
Memory
  • 32 MB SDRAM
  • 16 MB QSPI Flash
Communication
  • Gigabit Ethernet x 02
  • CAN FD x 2
  • RS485
Display 7 inch MIPI DSI with Capacitive touch
Camera 2 Mega Pixel
Software Support
  • Linux : 5.4
  • Android : 12.1.0_1.0.0 (L5.15.52_2.1.0 BSP)
Optional Interface
  • 13.56 MHz NFC Reader
  • 6 Axis Gyro
Customizable
Environmental IP65
Surge Protection 4 kV
Application
  • Industrial Control
  • PLC
  • Electric Charging Station

Customized Display

Vougavent provides development of customized displays from 5.7 Inch to 12 Inch, which has the options for configuring the Input Power, Interfaces, Mechanical dimensions etc.
