ESD Simulator

Smart way to analyze ESD performance of your product

QESD-15A is a simple and effective tool for analyzing the electrostatic discharge performance of products. The device have Capability of Air and contact discharge from 1 kV to 10 kV which enables validation according to various product requirements

Smart way to analyze ESD

Immunity to Electro static Discharge is mandatory for any Electronics product. This has impact on the product functionality and reliability. To assess the performance of Electronics device an ESD simulator has been developed by Vougavent.QESD series is a handheld ESD simulator, suitable for design validation and pre compliance, which supports test voltage from 500 V to 10 kV in 500 V steps. Our standard kit includes tips for Air and contact discharge as per the IEC/EN 61000-4-2. The device is powered by Lithium Ion battery and can be recharged using a micro USB charger. The device have a simple user interface which makes it easy to use. The voltage level and polarity can be adjusted by button and advanced configuration can be modified in setting menu.

Discharge Voltage from ±0.5 kV to ±10 kV
Discharge Tip for Air and Contact discharge
One touch polarity change
Rechargeable Lithium Ion Battery

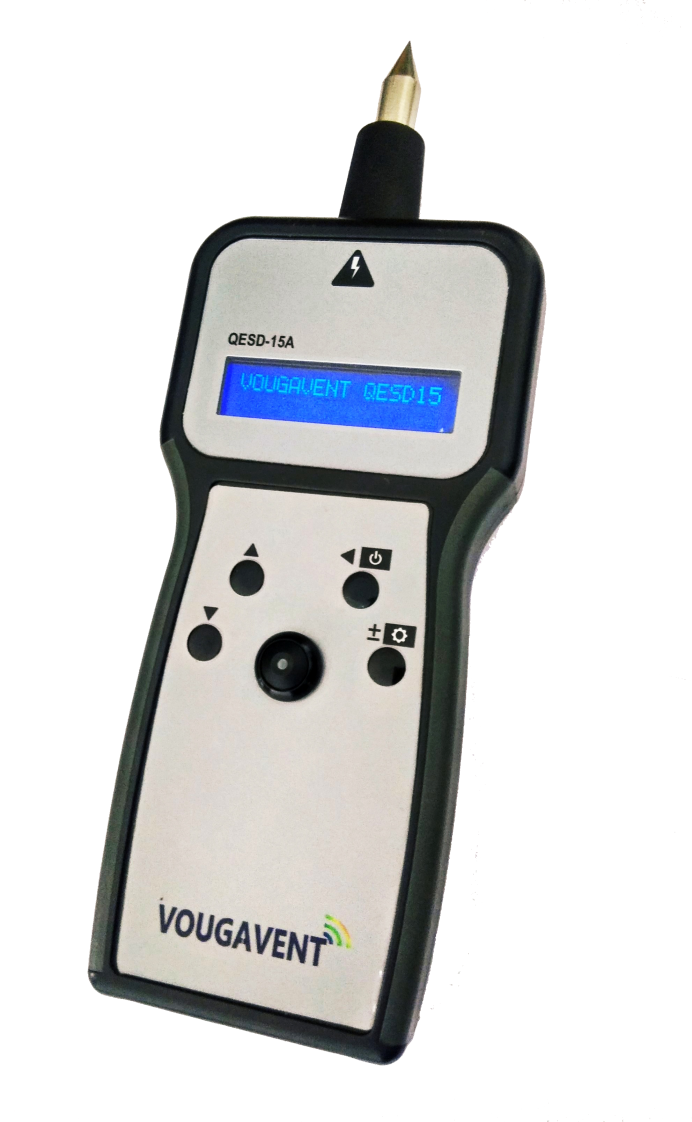

QESD-15A ESD simulator

Grounding cable

Air discharge Tip

Contact discharge Tip

  • Micro USB charger cable
  • Operating instruction manual
  • 6 Months warranty
  • Optional: Horizontal Coupling Plane (Custom size)
  • Optional: Rugged Plastic carry case
  • Optional: Online Training via MS Teams or Zoom
